The WilliamsRDM Covert Smart Solar Power System is a camouflaged solar charging system for remote deployments. It can be used with the Start system or with various other third party surveillance and security systems that use traditional solar panels. The system incorporates a camouflaged solar panel with accompanying circuitry which can be covertly deployed to avoid detection. The  circuity is designed to extract as much solar energy as possible under varying light conditions using power tracking algorithms. It incorporates a battery charging circuit which has been configured for 12 V lead acid battery charging but may be modified for a wide range of voltages and battery technologies. One of the main causes of battery failure in solar powered remote deployments is over charging of the batteries which can take years off of their service life. Covert Smart Solar Power Systems have been specifically designed to properly charge lead acid batteries and ensure they are not over charged. A detailed testing report can be seen here. It compares our covert solar solution to a typical battery installation on an off the shelf trail camera.

There are distinct lines within the Covert Smart Power Systems including Rocks, Logs, Tire Treads and Concrete Blocks.

I list of our current offerings can be seen here, although many other variations are possible, just contact us.

Of the Rock Line there are three variations of Rocks and four variations of the Logs. The color of the Covert Smart Power System can also be modified.

Covert Smart Solar Panel, Rock (PATENTED).

The Rock line of Covert Smart Power Systems consist of a rock shaped enclosure painted to blend in with the surrounding environment. There are currently three shape varieties of rocks and multiple shades of paints all with the same functional specifications. The only difference is their appearance in a natural setting.  Because, no matter how good the camouflage is, having identical items in close proximity often detracts from their stealthy appearance.

Covet Log Solar Panel

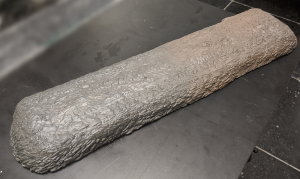

Covert Smart Solar Panel, Log (PATENTED).

The Log line of Covert Smart Power System also has three variations to aid in fully camouflaging the solar panels. Various paint shades are available with the log line.

Unfortunately, sometimes camouflaging something in nature requires solar panels to take the form of discarded items. Cameras have been deployed to record what happens at illegal dump sites. At these locations an abandoned tire looks more at home than a rock or a log. For these situations we created the Debris line of Covert Power Systems with a couple of tire configurations shown below.

We are very experienced in creating custom enclosures that will not draw attentions to the power system. The Tire Tread variations is a great example, but other items can be created as well

One of our latest offerings was a telephone cable utility box, we removed the top portion of the enclosure, created an exact copy of the part with our solar panel embedded in it.

The top of this enclosure was replaced with our covert solar power system

We have also created traffic cones to power various sensors and cameras hidden inside.

  • The original Traffic Code
  • The updated Traffic Cone with Solar Power base to power electronics hidden inside

Our covert solar power products come terminated with various connectors. If you do not see your connector here:

please email us. We can usually accommodate specific requests.

Key Features

  • Incorporates circuity to maximize solar charging efficiency under all lighting conditions.
  • Incorporates Constant Current/Constant Voltage Battery Charging to ensure batteries are properly charged and not over charged.
  • Interfaces with COTS battery boxes such as Buckeye/stealth cam/Spartan Camera etc.
  • 3-5W panel improves charging performance on overcast days or in partially shaded areas.  Rodent Resistant Cabling
  • WilliamsRDM can provide battery boxes or integrate batteries into the solar rock to reduce the system footprint.
  • 6V and 12V options Available to support common battery sizes
  • Use the optional WRDM Battery Saver Module to ensure batteries are not damaged due to over discharging. The module is easy to install on a 6 or 12V external battery.
Covert Smart Solar Power System Specs  Units
Power
Optimized Angle (Full Sun)3-5W
Flat on Ground (Full Sun)2-3.3W
Battery Float Voltage13.6Volts
Battery Charging Current400mA
Footprint
Weight (with cable)10.5Lbs
Approximate Dimensions13.5 x 13.5 x 2.5In
Material
Solar Cell TypePoly-crystalline Silicon


Deployments:

Click on an image for a full size picture.

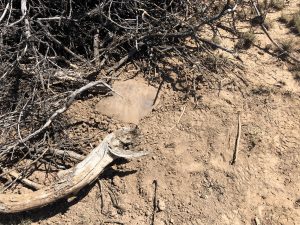

  • Rock Deployed at the base of a branch Pile in AZ.

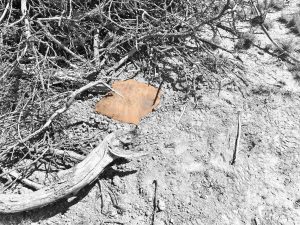

  • Rock Deployed at the base of a branch Pile in AZ. (REVEAL)

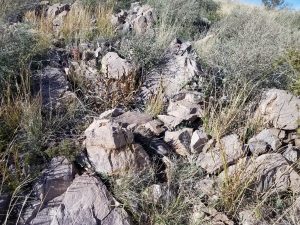

  • Rock Deployed on top of Rocks in AZ.

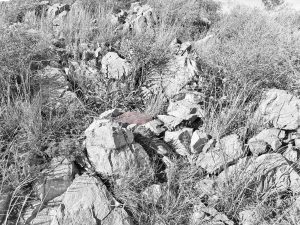

  • Rock Deployed on top of Rocks in AZ. (REVEAL)

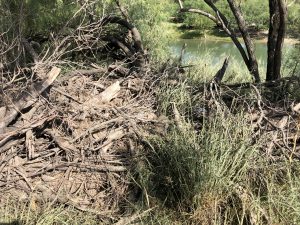

  • Covert Smart Solar Power System Log Deployed in South Texas.

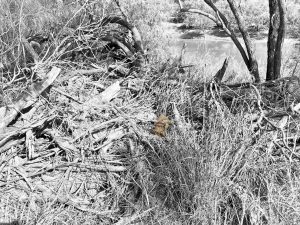

  • Covert Smart Solar Power System Log Deployed in South Texas. (reveal)
  • Solar panels as Debris is sometimes the best option
  • The Solar Panel is on the bottom right

Gallery:

Our patented technology has proven to be superior to our competitors products. As this short clip shows, our much smaller footprint produce significantly more power to charge cameras and ground sensors.
